Ranger LS43B Wheel Balancer

The Ranger LS43B Laser Wheel Balancer delivers supreme speed, accuracy, and innovation for professional wheel balancing. Handling wheels up to 47 inches in diameter, it completes a full balancing cycle in just 7 seconds—making it one of the fastest and most efficient balancers available. Equipped with Ranger’s advanced 3D Auto Data Entry system featuring the DataWand™ and Quick-Touch Data Arm™, it automatically captures wheel diameter, width, and offset for precise results. Its Laser-Spot Technology ensures pinpoint weight placement, reducing guesswork and improving performance. Designed for productivity, the LS43B includes multiple user settings, automatic braking, a soft-touch control panel, and ergonomic storage, making it the perfect solution for high-volume automotive shops seeking accuracy and speed.

Specifications:

Handles wheels up to 47" in diameter
7-second average balancing cycle time
3D Auto Data Entry system with DataWand™ and Quick-Touch Data Arm™
Laser-Spot Technology for precise weight placement
Dynamic, Static, and Performance Alloy balancing modes
Multi-user save function for productivity
Ergonomic control board with LED display
Retrieves static, dynamic, and ALU1/ALU2/ALU3 data simultaneously
Automatic rolling wheel parameter settings
Low-RPM balancing operation
Automatic braking system
Gram/ounce and millimeter/inch selection options
Automatic round-off with top-dead-center weight position indicator
Tiered weight placement indicators for hidden or split weights
Manual or automatic start when hood is lowered
Self-calibration function for consistent accuracy
Spacious top weight tray and open-top side shelf for bulk weight rolls
Precision-machined 40 mm hardened-steel shaft
Quick-release hub nut for faster setup
Side-position brake holds wheels at 12 o’clock for proper weight placement
Built-in side cone storage pegs for accessories
Open-side hood design accommodates various tire shapes and sizes

Motor: 220 VAC, 50/60 Hz, 1 Ph
Balancing Modes: 1 dynamic / 1 static / 3 aluminum alloy / 1 hidden
Maximum Tire Diameter: 43" (1,100 mm)
Maximum Tire Weight: 145 lbs. (65 kg)
Maximum Wheel Diameter: 12" - 26" (305 mm - 660 mm)
Wheel Width Capacity: 4" - 15" (102 mm - 381 mm)
Balancing Increments: 0.25 or 0.01 oz
Balancing Speed: 180 RPM
Accuracy: +/- 1 gram (.035 oz)
Resolution: 5 grams / .25 oz
Height (Hood Up): 66" (1,676 mm)
Height (Hood Down): 53" (1,346 mm)
Width: 54" (1,371 mm)
Depth (Hood Up): 39" (990 mm)
Depth (Hood Down): 40" (1,016 mm)
Power Cord Length: 63" (1,600 mm)
Working Temperature: 27°F (-5°C) – 82°F (50°C)
Drive System: Belt Drive
Balancing Modes: Dynamic / Static / 3-Alloy
Top Positioning Weight Locator: Standard
Inside & Outside Measuring: Standard
Millimeter / Inches Selection: Standard
Ounce / Gram Selection: Standard
Wheel Offset Distance Setting: Manual
Self-Calibration Function: Standard
Auto Start: Standard
Wheel Spin Braking: Automatic / Electronic
Wheel Holding Manual Brake Pedal: Standard
Centering Cones Included: 3 Standard / 1 Truck
Wheel Calipers: Standard
Rear Cone Mount Spring: Standard
No-Mar Rear Cone Mount Pressure Cup: Standard
Quick-Release & Mount Hub Nut: Standard
Shipping Weight: 412 lbs. (187 kg)
Shipping Dimensions: 44" x 30" x 46" (1,117 mm x 762 mm x 1,168 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.

Wheels

Ranger LS43B Wheel Balancer

Ranger RWS-1B Portable Wheel Bubble Balancer

Ranger RB24T Truck Wheel Balancer

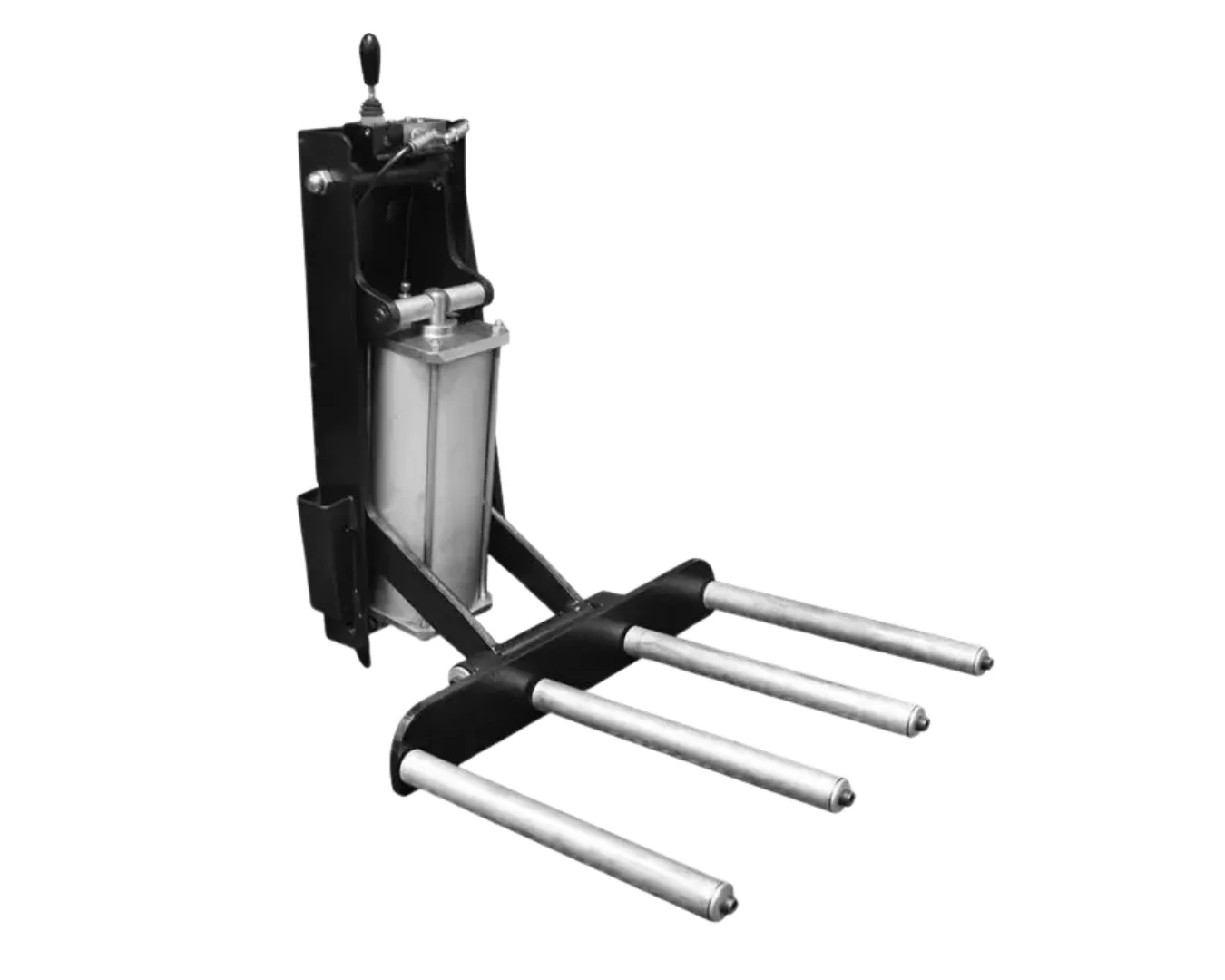

Ranger RWL-150T Pneumatic Wheel Lift

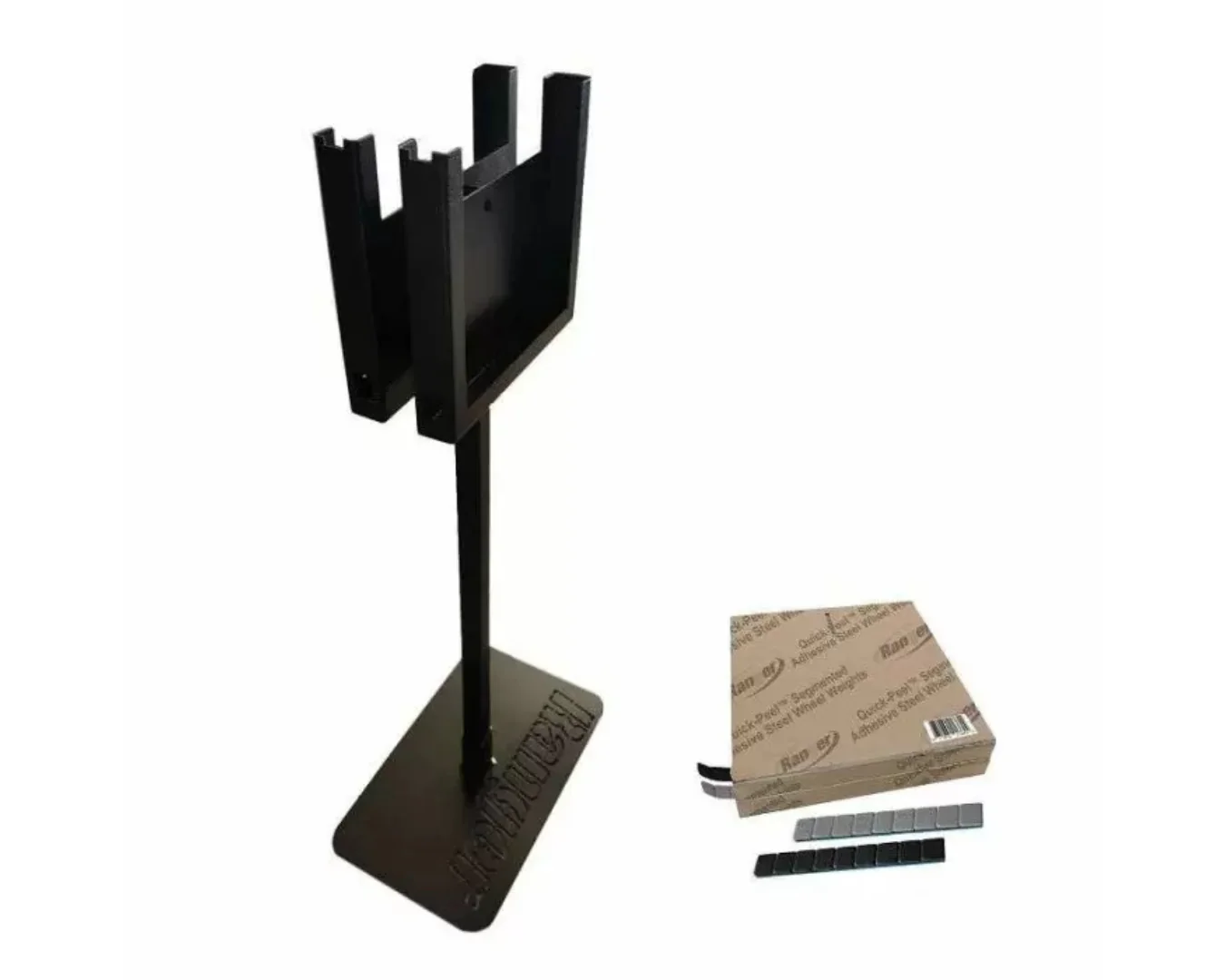

Ranger Adhesive Steel Wheel Weights Dispenser Stand

Ranger Adhesive Steel Wheel Weight Dispenser Stand Kit

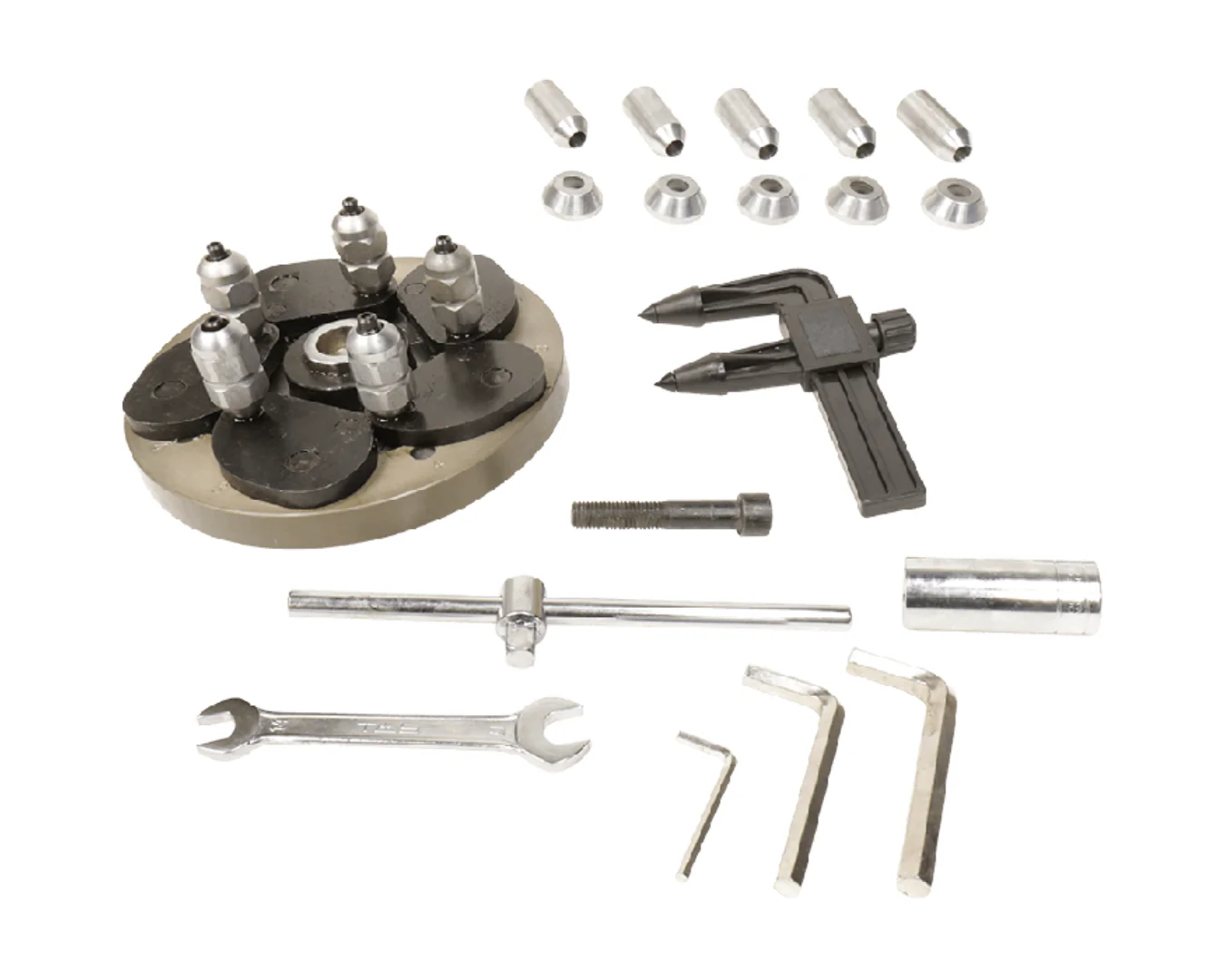

Ranger Wheel Balancer Lug Bolt Kit

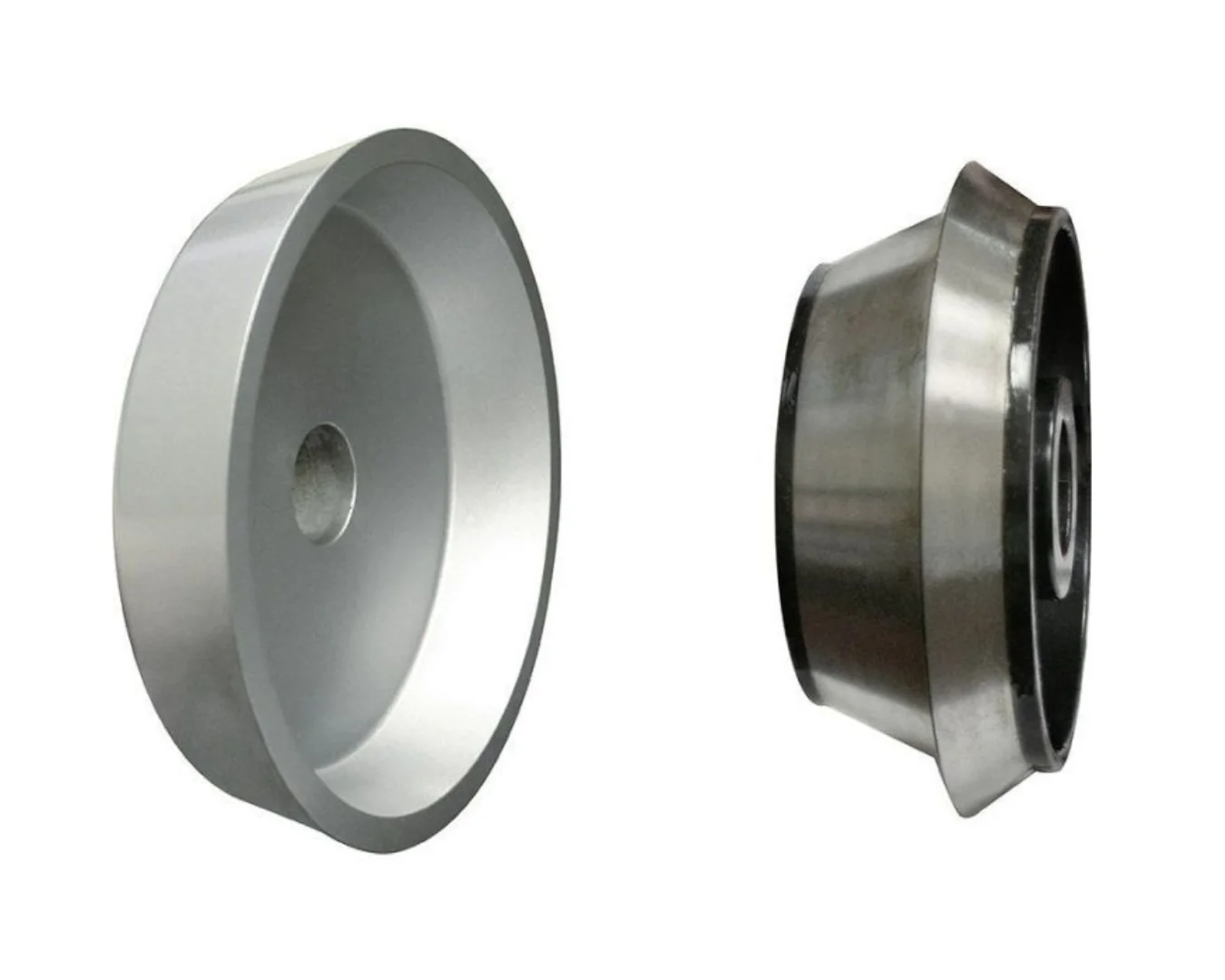

Ranger Wheel Balancer Truck Cone Kit
